Asset Catalog - Color

3. Click the "Create" button and save the file as "Assets" to your FB app folder

4. An empty asset catalog will be displayed. Click the '+' button at the bottom of the outline view and choose New Color Set from the menu

5. Give the color a name

6. Show the Attributes Inspector (View/Inspectors/Attributes ⌥⌘4)

7. In the Attributes Inspector (right hand column), change Devices from Universal to Mac

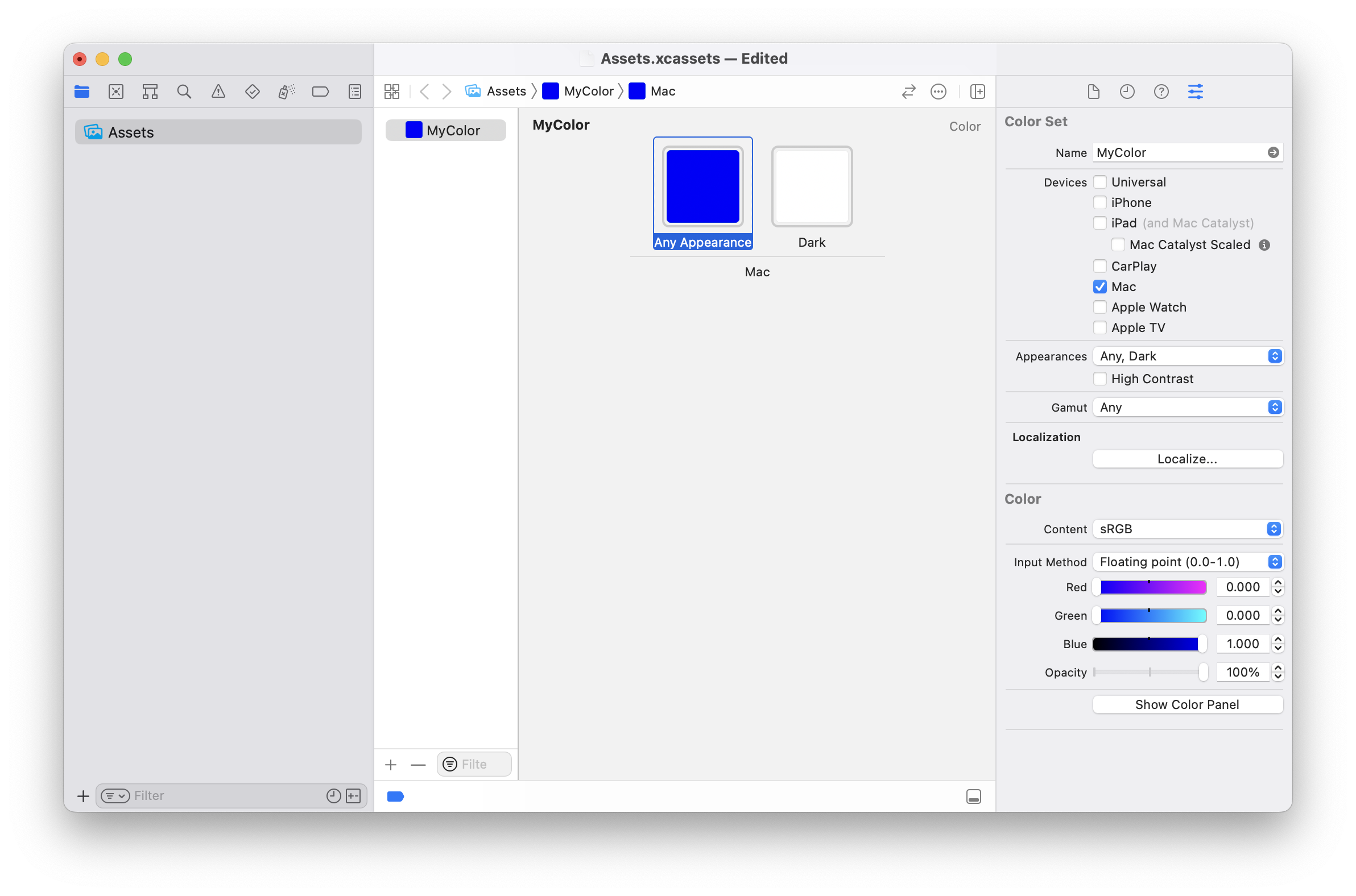

8. Click on the 'Any Appearance' color well and set its color in the attributes inspector

9. Click on the 'Dark' color well and set its color in the attributes inspector

10. In FutureBasic, create a new file and paste the following code

include resources "Assets.xcassets"


void local fn BuildWindow
window 1, @"Asset Catalog - Color", (0,0,480,270)

textlabel 1, @"Text", (211,117,58,35)
ControlSetFont( 1, fn FontSystemFontOfSize( 30 ) )
TextFieldSetTextColor( 1, fn ColorNamed( @"MyColor" ) )
end fn

fn BuildWindow

HandleEvents


11. Save the FB file to the same folder as the asset catalog and run it
